Attention

• VTX Power: Higher VTX power consumes more energy and generates more heat, reducing flight time. For better flight time in indoor scenarios, use 25~100mW power.

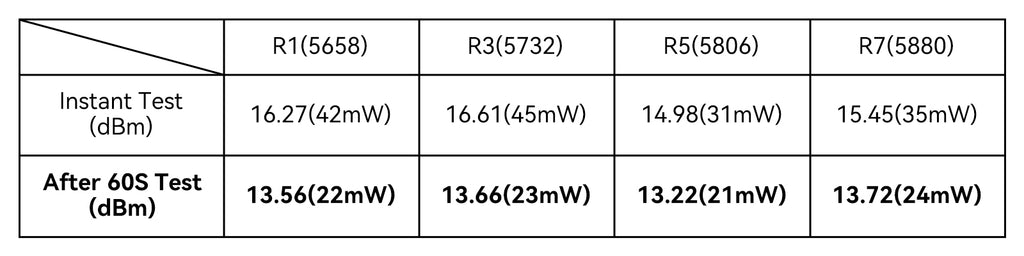

• The calibrated power measured after temperature stabilization (stabilization condition: more than 60 seconds after powering on the flight controller) is: when set to 25mW, the output power is between 14dBm±0.8dBm (21mW to 30mW), which meets the normal standard. The following is the 5IN1 Air FC test data with the VTX set to 25mW, the power data is tested at different times on the R1, R3, R5, and R7 frequency points.

• The 4IN1 Air FC V1.1 version has already solved the VTX Output Power anomaly problem.

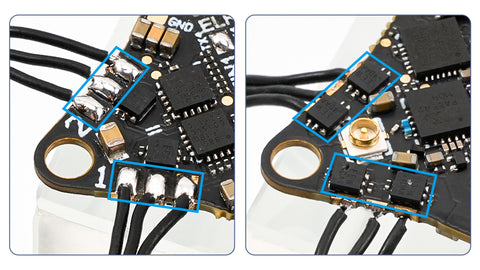

• Motor Wiring: Only soldering is supported for motor wiring on the flight control. Be careful to ensure the temperature of the soldering iron is maintained below 370℃ and limit the soldering duration to 1~2 seconds.

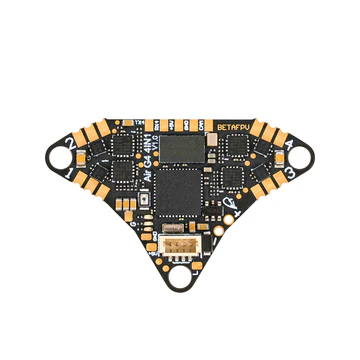

• 1 * Air Brushless Flight Controller
• 1 * 2.4g Antenna (Only 5IN1 Version)
• 1 * Type-C to SH1.0 Adapter
• 1 * SH1.0 4Pin Adapter Cable
• 1 * 5.8g VTX Antenna
• 1 * BT2.0 U Whoop Cable Pigtail | 40mm
• 4 * M1.4*4 Self-tapping Screws
• 4 * Shock Absorbing Ball

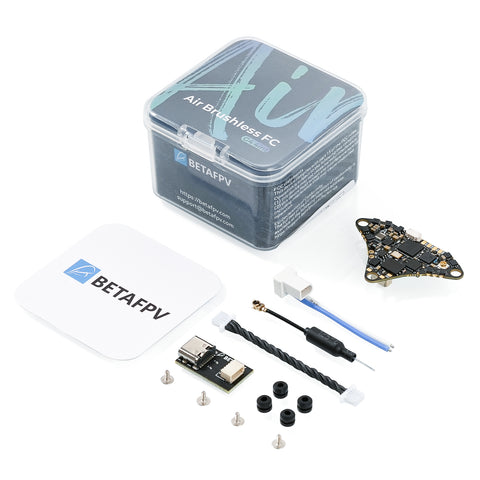

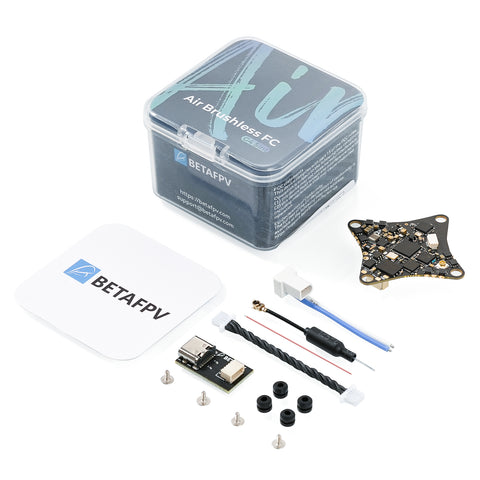

Note: The below packaging pic is the 4IN1 Version.
